Sawmill

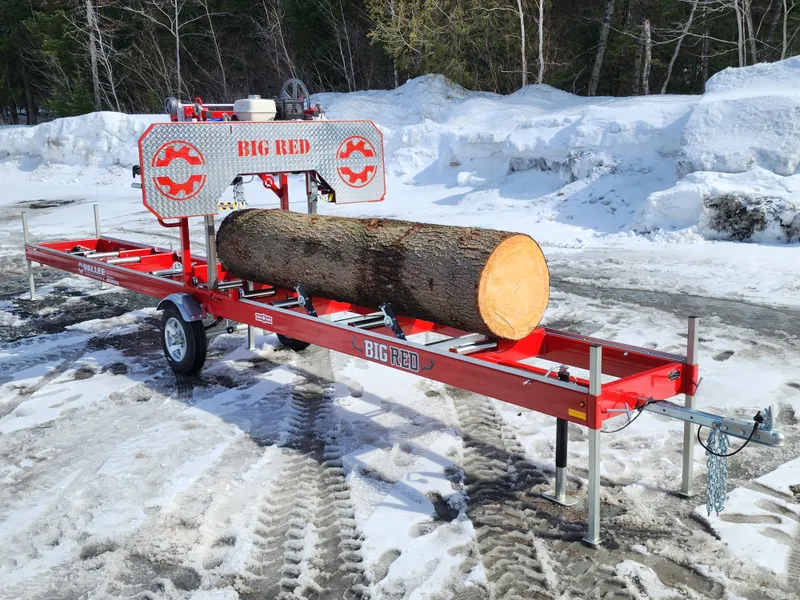

Vallee Big Red - For sale

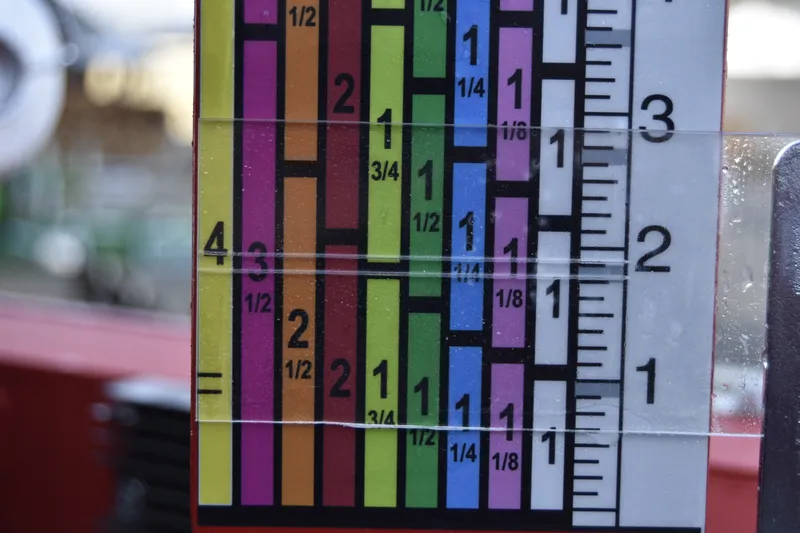

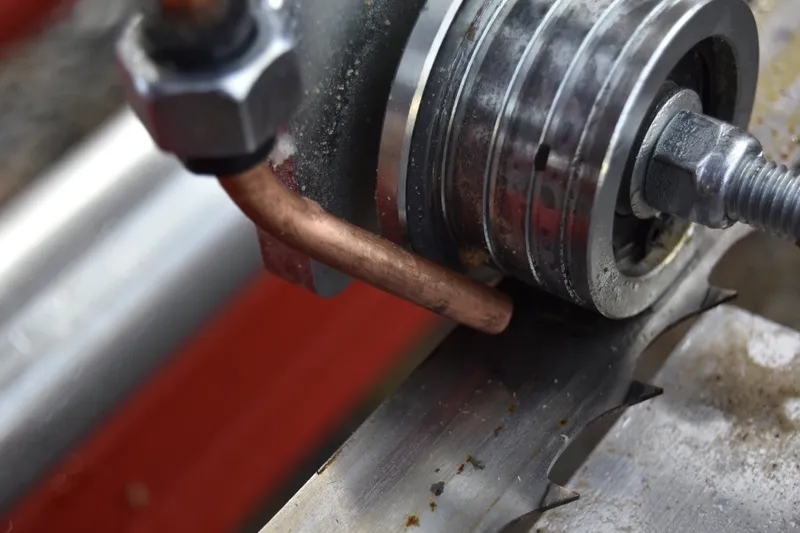

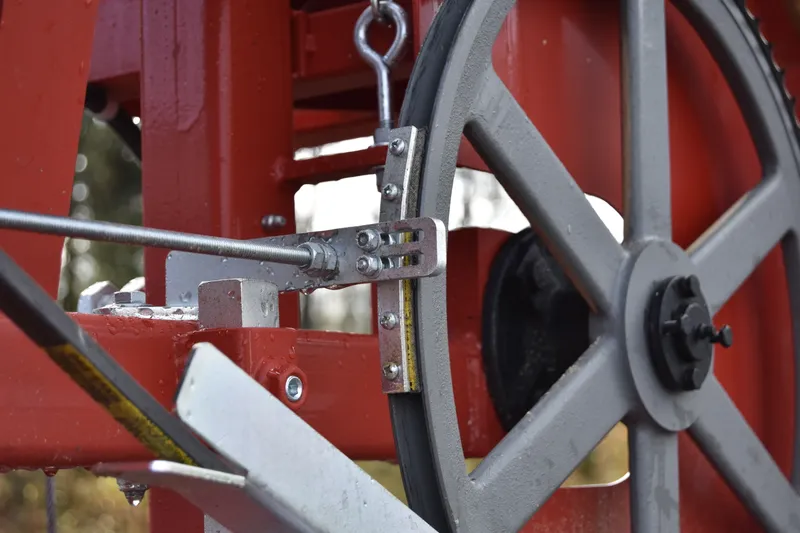

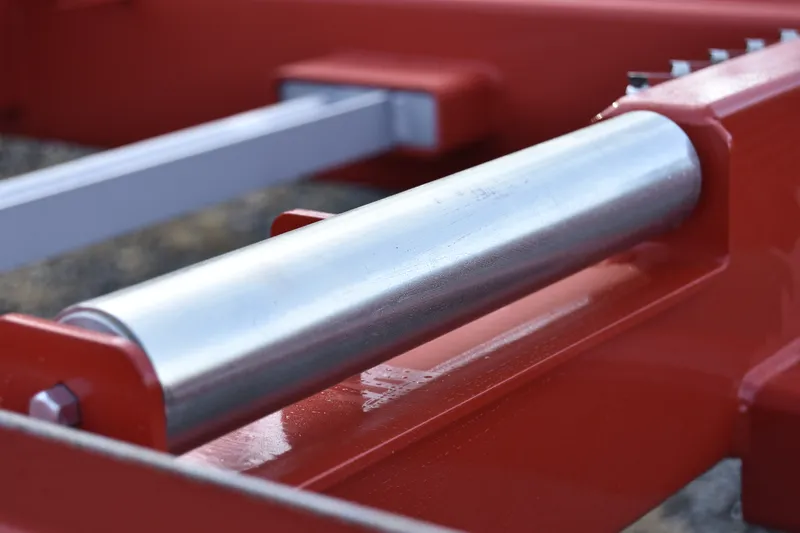

Whether you saw professionally or for fun, the Big Red is a great all-in-one portable sawmill that’s ready to tackle big projects! Main features 30-inch diameter and up to 21 feet long cutting capacity 2” x 6” x ³⁄₁₆” tubular steel frame Frame rollers Road trailer package with single or twin axle available in option Honda engine with electric starter (13HP or 20HP) Electric height adjustment of the saw head Easy and ergonomic One-step-Go system Engine 13 HP Honda GX390 or optional 20 HP Honda GX630 Electric starter 18 amps/200 Watts alternator 3-year warranty by the manufacturer Saw head Capacity of 30’’ in diameter Maximum board width of 24’’ Last board cutting capacity ⅞” thick Cam lock with pressure gauge blade tensioner One piece solid front panel for easy access blade maintenance Electric saw head height adjustment with automatic locking system High-quality 4000 lb electric winch High grade double bearing blade-guide Large 7 gallons (26 liters) removable lubrification tank Heavy-Duty saw head frame made of welded 2’’x2’’ solid steel tubing Large colored lumber scale, details from ¾’’ up to 4’’ Automatic blade lubricant system Automatic blade brake system Automatic engine throttle and saw blade engagement Blade size of 157 ½’’ x 1 ¼’’ (1 blade included) MXV-890 Drive Belt B56 Flywheel Belt Hydraulic blade tensioner available in option. Frame Capacity of 21’ maximum board length, onto a 24’ frame Solid steel 2” x 6” x³⁄₁₆” tubing frame completely welded (no joints) Frame rollers to facilitate the movement of logs and boards 4 log clamps 4 levelers equipped with casters for easy log rotation 6 stopper posts 4 adjustable jacks and 4 stabilizing feet for optimal leveling A storage platform for tools Towing equipment Optional single axle or twin axle road trailer kit High-speed wheels and tires Wheel fenders 2000 lb. suspension and axle 2-inch drawbar and 3500-lb. safety chain Brake lights and turn signals Illuminated license plate bracket Frame-integrated wiring
