Sawmill

Vallee Rebel

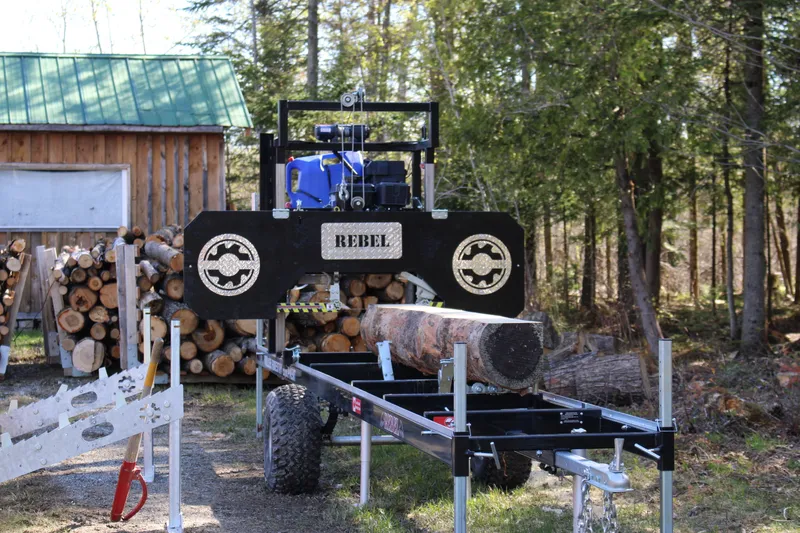

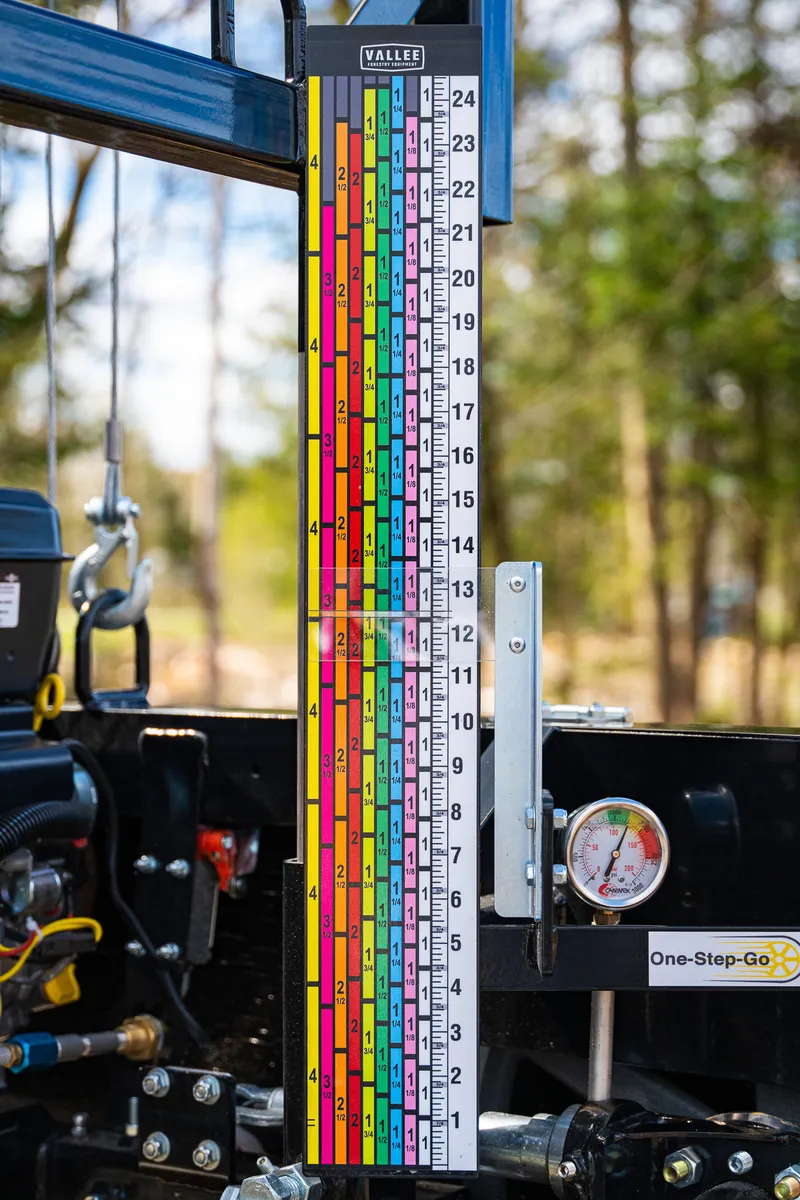

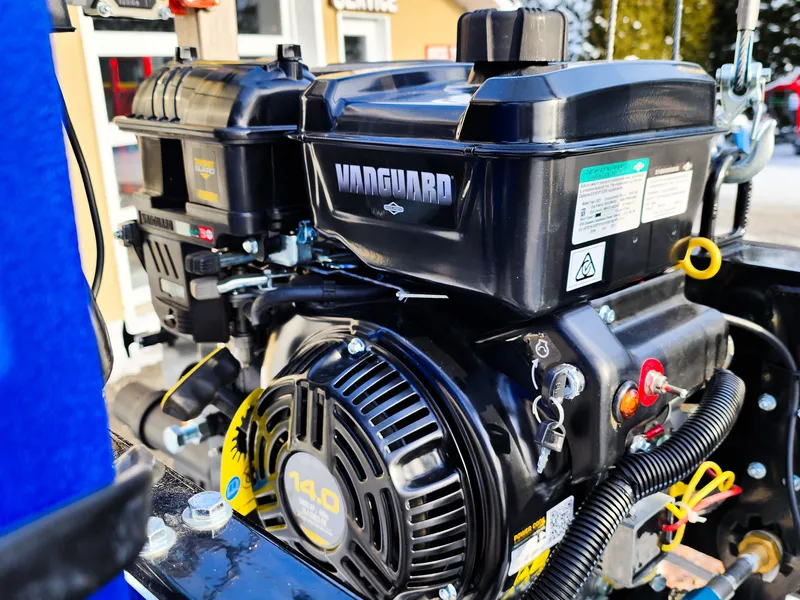

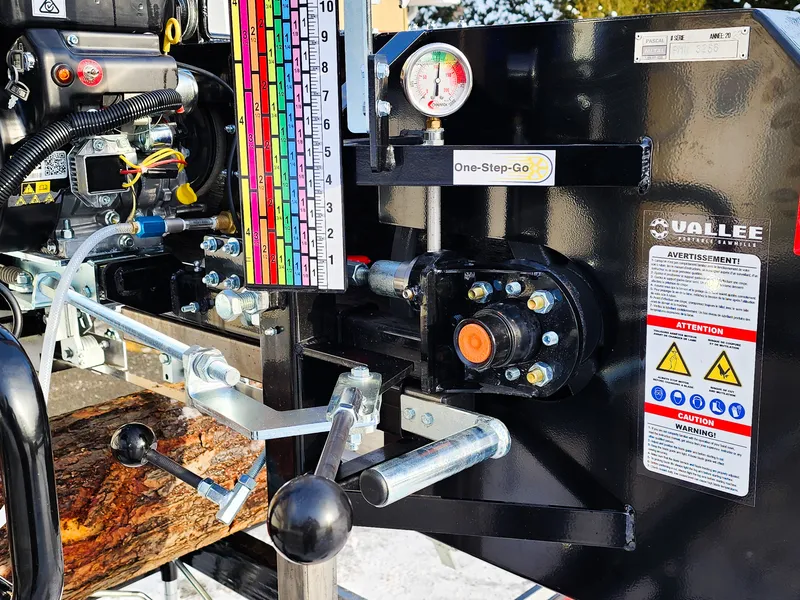

Designed for hobby sawyers looking for a top-quality recreational portable sawmill, the Rebel comes pre-assembled and ready to saw! Main features 30-inch diameter and up to 17 feet long cutting capacity 2” x 4” x ⅛” tubular steel frame 14HP Vanguard engine with electric starter Off-road trailer kit included Electric height adjustment of the saw head Easy and ergonomic One-step-Go system Engine 14 HP Vanguard engine (by Briggs & Stratton) 408cc, gasoline, air cooled, 4 stroke, one cylinder Electric starter Cyclonic Air Filtration 3-year warranty by the manufacturer Saw head Capacity of 30’’ in diameter Maximum board width of 24’’ Last board cutting capacity ⅞” thick Cam lock with pressure gauge blade tensioner One piece solid front panel for easy access blade maintenance Electric saw head height adjustment with automatic locking system High-quality 4000 lb electric winch High grade double bearing blade-guide Large 7 gallons (26 liters) removable lubrification tank Heavy-Duty saw head frame made of welded 2’’x2’’ solid steel tubing Large colored lumber scale, details from ¾’’ up to 4’’ Automatic blade lubricant system Automatic blade brake system Automatic engine throttle and saw blade engagement Blade size of 157 ½’’ x 1 ¼’’ (1 blade included) MXV-890 Drive Belt B56 Flywheel Belt Hydraulic blade tensioner available in option Frame Capacity of 17’ maximum board length, onto a 19 ½’ frame Solid steel tubing frame 2” x 4” x ⅛” completely welded (no joints) 2 log clamps 2 levelers equipped with casters for easy log rotation 3 stopper posts Adjustable jacks and stabilizing legs for optimal leveling A storage platform for tools Frame rollers to facilitate the movement of logs and boards available in option Towing equipment (off road only) Single axle off road trailer kit All-terrain wheels and tires (optional high-speed wheels available) 2000 lb. suspension and axle 2-inch drawbar and 3500-lb. safety chain
